Insulating Coatings

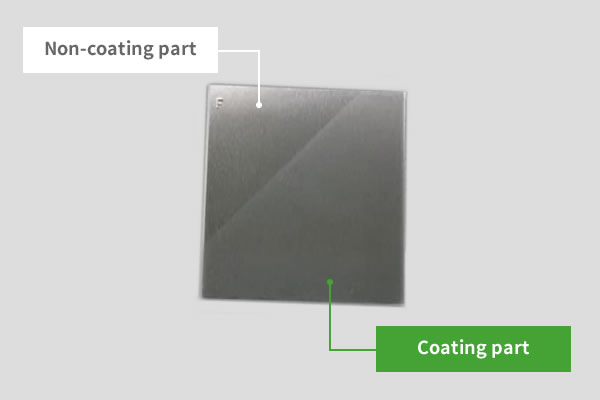

Substrate:Aluminum substrate
Coating thickness:1-2 um

Key Features

  • Inorganic-organic hybrid nanocomposite aqueous thin film coating material
  • Thin film with high dielectric breakdown strength
  • Our material is appropriate for coating and sealing a wide range of materials such as aluminum, steel, stainless steel, brass, copper, glass, ceramics, and other materials with porous surfaces.

Samples are available. Please contact us to discuss your requirements.


Viscosity 15-40 mPas *We can prepare a proposal based on your deposition method.
Coating Method Dipping, Spray, etc.
Heating Conditions 150 ℃/60 min.
Dielectric Breakdown Strength >150 V/μm @3-15 μm

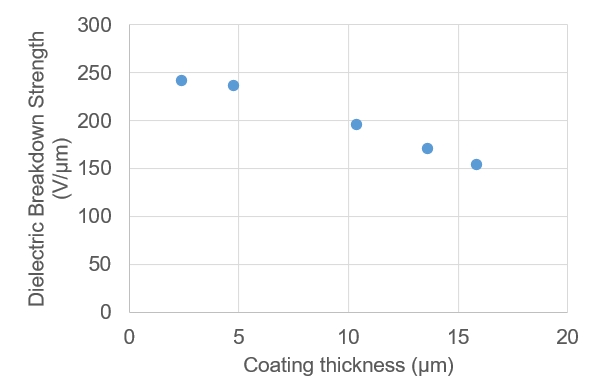

Dielectric Breakdown Strength
