Low-temperature-sintering High thermal-conductivity Die Attach Adhesives Using MO Technology (conductive, sintering type)
Key Features

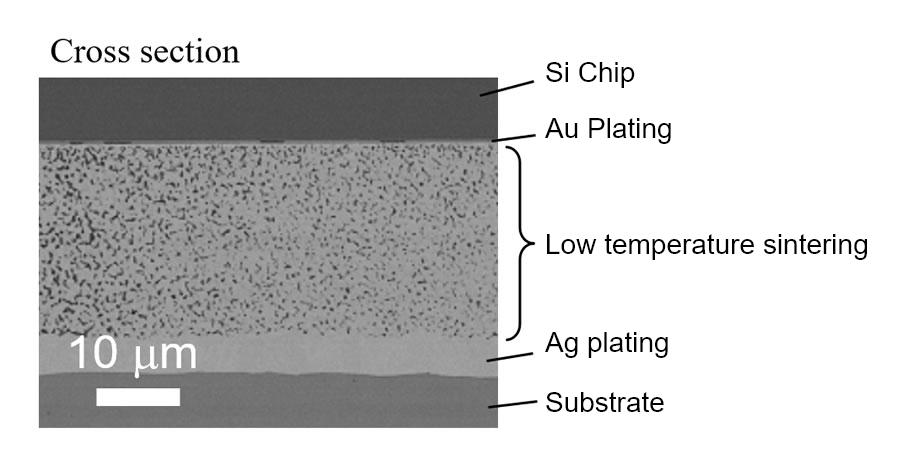

Low-temperature sintered high thermally conductive die attach pastes using MO technology
Materials with higher heat-dissipation are required as device development seeks higher density and integration.
Low-temperature curable highly thermally conductive die attach materials has been developed using MO technology. Products are available including one that provides thermal conductivity of more than 200 W/mK.
Samples are available upon your request.
Property Data
| Product Number |
Characteristics | Applications | Viscosity [Pa･s] |
Curing Conditions |
Volume Resistivity [Ω･cm] |
Adhesive Strength [N/mm2] |
Thermal Conductivity [W/mK] |
|---|---|---|---|---|---|---|---|
| H9892-5 | Silver sintering material for pressure bonding Bond to bare copper substrate Good for temporary bonding of elements with heat Good for printing application PFAS free |
Power IC SiC、GaN |
40 (E type 5rpm) | Pressure: 15MPa Temperature: 300Co Time: 2min. (under Air) |
2.7×10-6 | 80 | 250 |
| H9888-2 | Silver sintering material for pressure-less bonding High density and very high thermal conductivity type Good for dispensing application PFAS free |
Power IC SiC、GaN |
35 (E type 5rpm) | RT -> 210C for 62min, hold for 60min(under Air) RT -> 250C for 75min, hold for 60min(under N2) |
5×10-6 | 85 | 275 |
| H9888-3 | Silver sintering material for pressure-less bonding High density and very high thermal conductivity type Good for printing application Good for dispensing application Supports large-area chips PFAS free |
Power IC SiC、GaN |
45 (E type 5rpm) | RT -> 250C for 75min, hold for 60min (under Nitorogen) RT -> 200C for 60min, hold for 60min (under air) |
5×10-6 | 62 | 275 |
| H 9890-6ANP | Silver sintering material for pressure-less bonding High thermal conductivity type Good for dispensing application PFAS free |
Power IC SiC、GaN |
30 (E type 5rpm) | RT -> 200C for 60min, hold for 60min (under Nitrogen) |
8×10-6 | 50 | 140 |
| H 9890-10ANP | Silver sintering material for pressure-less bonding High thermal conductivity type with low bleed-out property Good for dispensing application PFAS free |
Power IC SiC、GaN |
30 (E type 5rpm) | RT -> 200C for 60min, hold for 60min (under Nitrogen) |
8×10-6 | 75 | 140 |
| H 9890-11NP | Silver sintering material for pressure-less bonding Thermally conductive and low modulus type Good for dispensing application PFAS free |
Power IC SiC、GaN |
30 (E type 5rpm) | RT -> 200C for 60min, hold for 60min (under Nitrogen) |
13×10-6 | 50 | 60 |
